Module widgets/waveform-graph

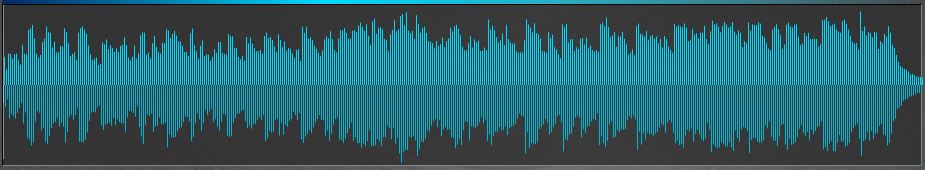

Example 1: Just draw the waveform.

const audioElement = document.getElementById('audio');
const viewElement = document.getElementById('div-analyzer');

const waveFormGraph = new WaveformGraph(audioElement, viewElement, { colorPositive: '#00daff', colorNegative: '#00b6d5' });

// We can start only after user starts interact with our page.
// This is because of HTML Web Audio API restriction.
document.body.onclick = () => {
  waveFormGraph.render();
}

Example 2: Draw the waveform and set the data to the other graph.

const audioElement = document.getElementById('audio');
const viewElement1 = document.getElementById('div-analyzer-1');
const viewElement2 = document.getElementById('div-analyzer-2');

const waveFormGraph1 = new WaveformGraph(audioElement, viewElement1, { colorPositive: '#00daff', colorNegative: '#00b6d5' });
const waveFormGraph2 = new WaveformGraph(new Audio(), viewElement2, { colorPositive: '#00daff', colorNegative: '#00b6d5' });

// We can start only after user starts interact with our page.
// This is because of HTML Web Audio API restriction.
document.body.onclick = () => {
  // Draw the first graph.
  waveFormGraph1.render().then(() => {
    // Get a simplified data samples for drawing.
    // 2000 values are more than enough to draw fast and correct on full HD screen.
    const data = waveFormGraph1.getDataSampling(2000);

    // Set obtained the data to the new waveform graph and draw it.
    waveFormGraph2.setDataSampling(data).render();

    // Obtained "data" - You can save and use for fast render.
  });
}

See more options at interface definition: IWaveFormGraphOptions
